SICK IME12-06BPSZC0K Sensor

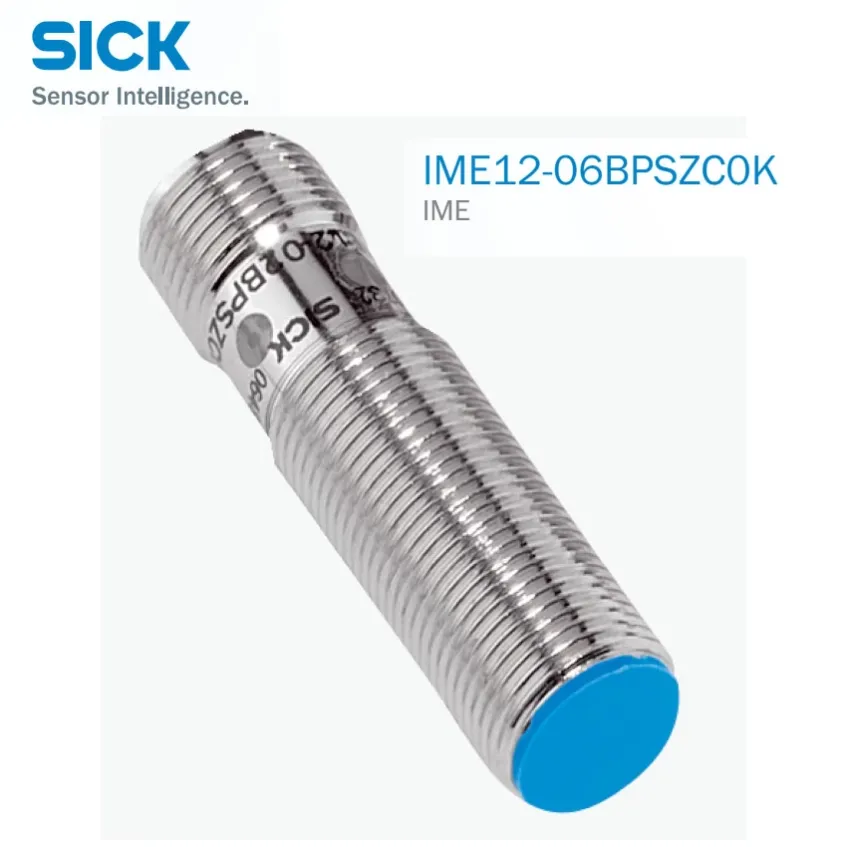

SICK IME12-06BPSZC0K inductive proximity sensor. M12 barrel with 6 mm range for position monitoring and metal part counting.
Overview
The SICK IME12-06BPSZC0K is an inductive proximity sensor of the IME12 family with a 6 mm sensing range in the M12 threaded barrel format. It delivers contactless metal detection for machine automation, from position monitoring to metal object counting on production lines.
How It Works
The sensor's oscillator generates an electromagnetic field at the active face. A metal target entering the field produces eddy currents that damp the oscillation, and the output switches when damping exceeds the threshold. Detection is contactless, repeatable and independent of ambient conditions.
Key Features
- Sensing range 6 mm for reliable metal detection
- M12 threaded barrel, easy standard mounting
- Contactless switching with long service life
- Insensitivity to dust, vibration and light
- Suitable for fast counting applications
- Sturdy construction for industrial environments
Typical Applications
- End-position monitoring on cylinders and slides
- Metal part presence checks in assembly equipment
- Cam and gear tooth detection for speed monitoring
- Counting on conveyor systems
- Position feedback in fixture building

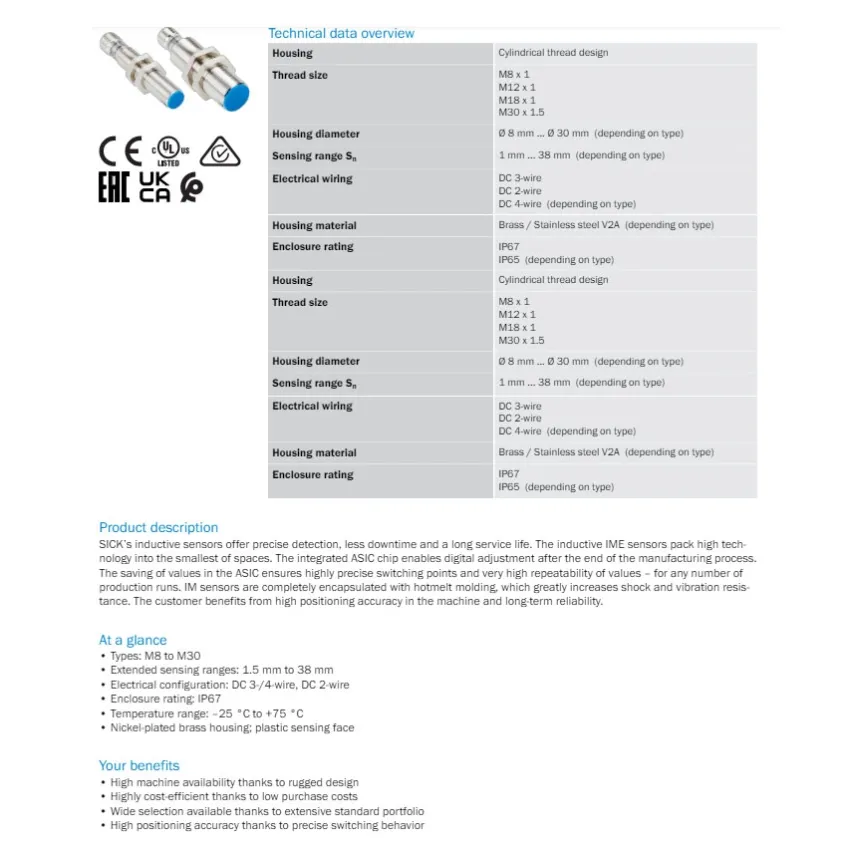

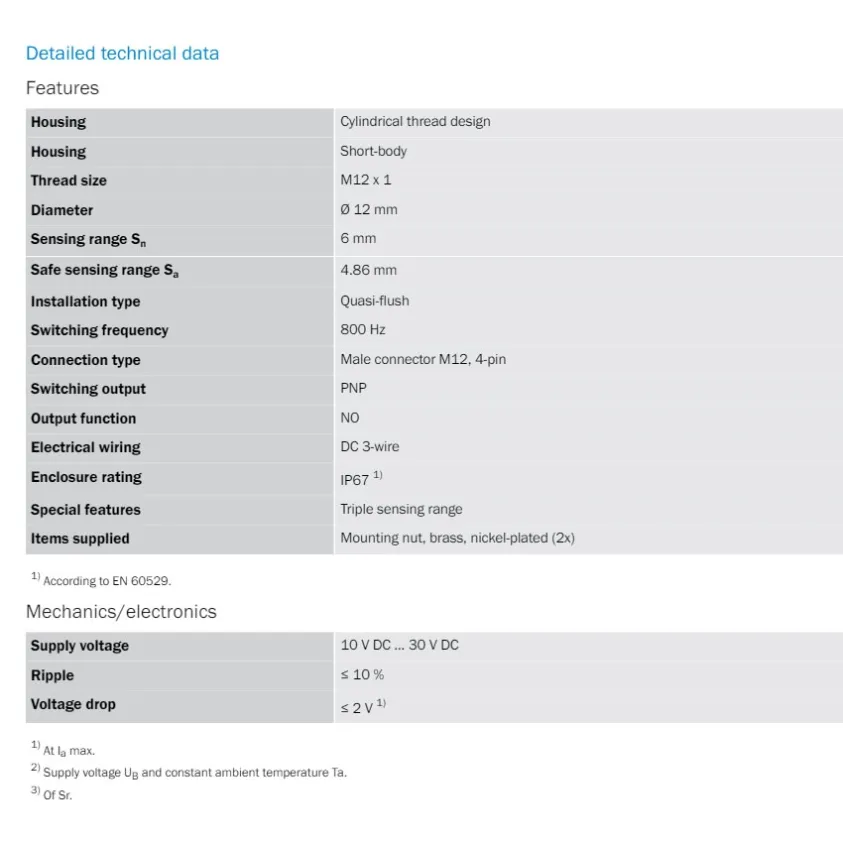

Specifications
Attribute | Value |
|---|---|
Model | SICK IME12-06BPSZC0K |
Detection principle | Inductive proximity sensing |
Sensing range | 6 mm |

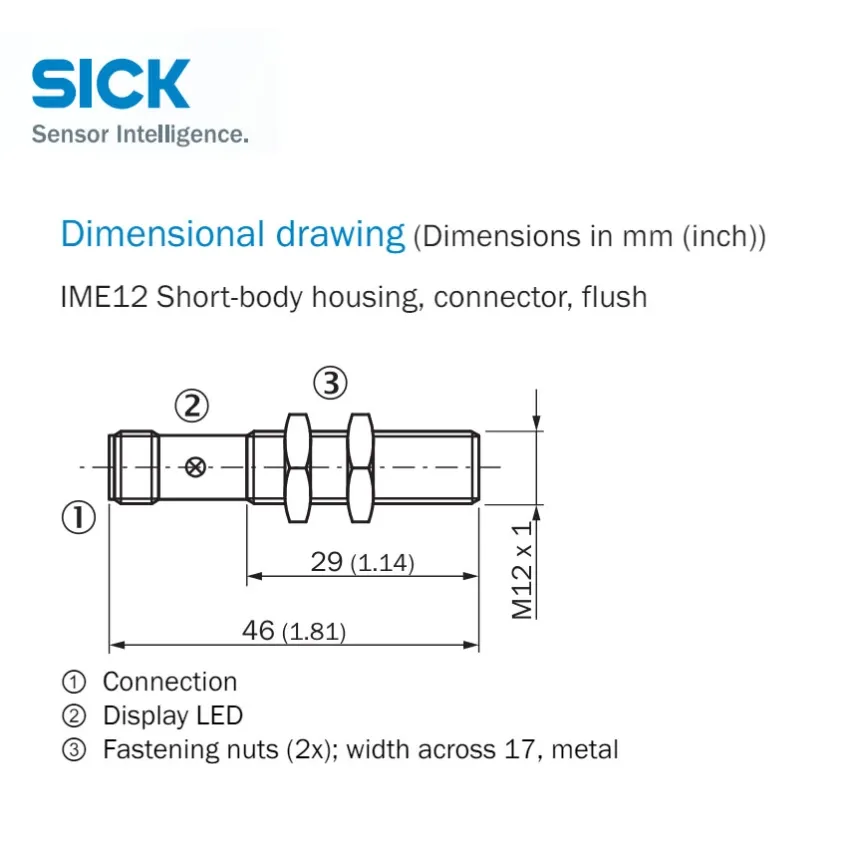

Housing format | M12 threaded barrel |
Installation and Setup Notes
Follow the embeddable or non-embeddable mounting rule of the family to avoid range reduction from surrounding metal. Tighten the lock nut to specification and provide strain relief for the cable. The nominal range applies to mild steel; factor in the reduction factors for other metals when designing the application.
Frequently Asked Questions
What does 06 in the order code mean?
It identifies the 6 mm sensing range of this IME12 variant.
Can it switch fast enough for counting?
Inductive sensors of this family are designed for high switching frequencies and handle typical counting speeds.
Does it detect all metals equally?
All metals are detected, with the range depending on the metal type.
Related Proximity Sensors
For the 8 mm variant, see the SICK IME12-08NPSZW2K. For the 4 mm variant, see the SICK IME12-04BNSZW2S.
