SICK PL80A Sensor

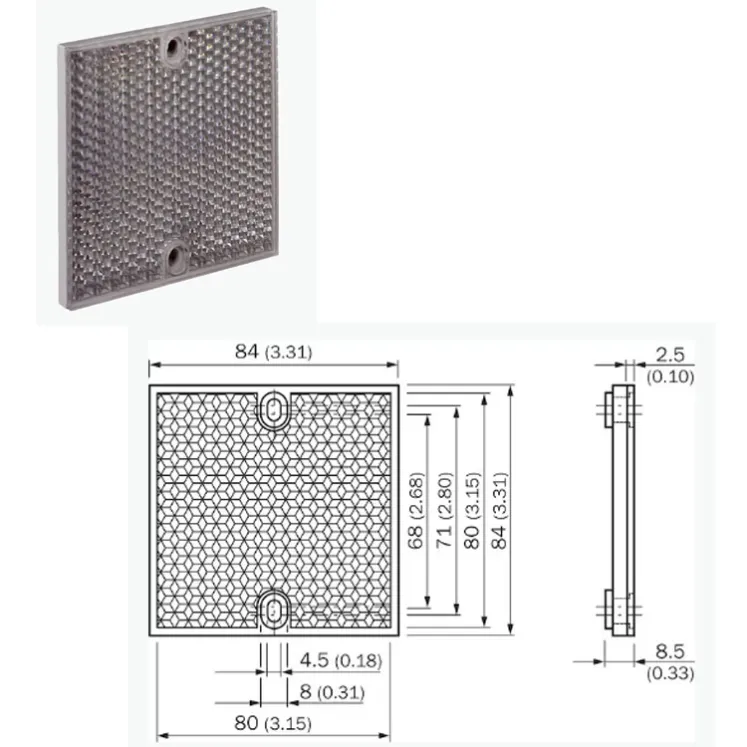

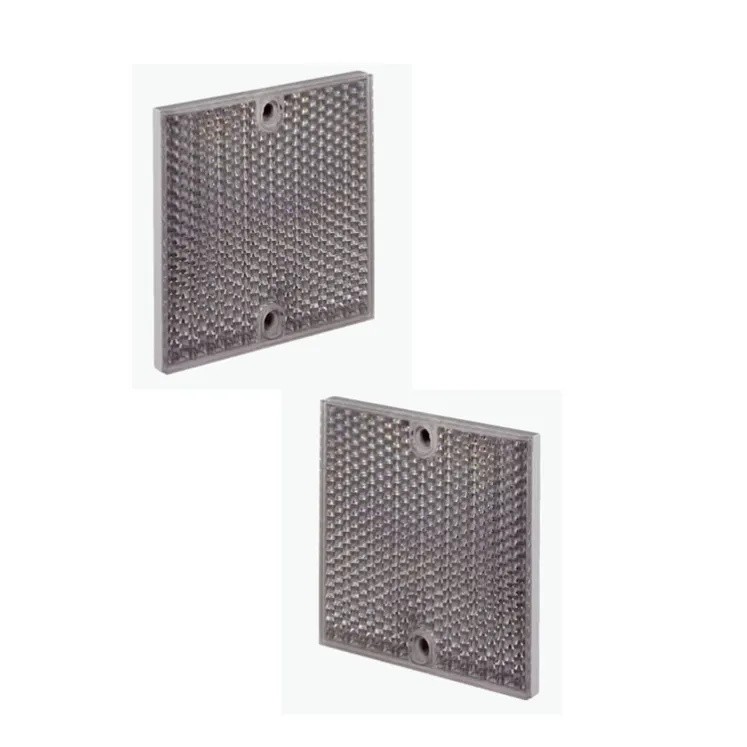

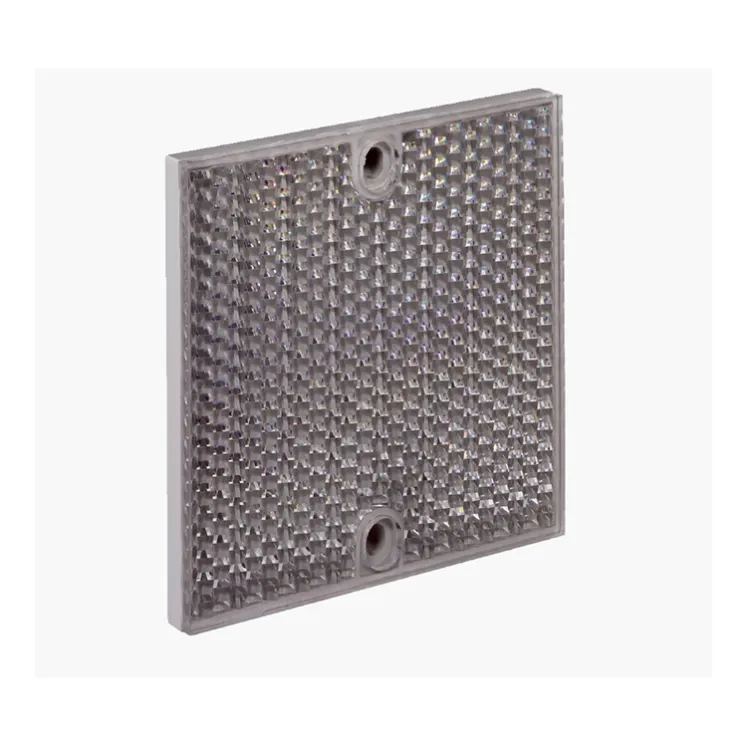

SICK PL80A reflector plate, part 1003865. 80 mm class reflector supporting long-range retro-reflective sensing up to about 22 m.
Overview
The SICK PL80A (part number 1003865) is a reflector plate of the PL series with an 80 mm class format. The larger reflective area supports longer sensing ranges with retro-reflective photoelectric sensors, including family ratings of up to about 22 m depending on the sensor used.
How It Works
The corner-cube surface returns the beam parallel to incidence, giving the sensor a strong return signal over long distances. The 80 mm format provides the optical aperture needed for long-range retro-reflective applications.
Key Features
- Reflector plate, 80 mm class
- Part number 1003865
- Supports long-range retro-reflective sensing, up to about 22 m with matching sensors
- Robust surface for industrial environments
- Flexible mounting options
Typical Applications
- Long-range light barriers on conveyors and cranes
- Object detection on wide machine openings
- Retro-reflective sensing in intralogistics
- High-bay and transfer area detection
Specifications
Attribute | Value |
|---|---|
Model | SICK PL80A |
Part number | 1003865 |
Accessory type | Connection and mounting technology |
Installation and Setup Notes
Install the accessory according to the mating product's documentation, verify secure mechanical fixation and strain relief for cables, and inspect the connection during regular machine maintenance to keep the sensing chain reliable.
Frequently Asked Questions
Which sensors achieve the longest range with PL80A?
Long-range retro-reflective families such as WL9 series units specify this reflector class.
Can it be used with short-range sensors?
Yes, the reflector size does not prevent shorter ranges.
How should it be cleaned?
With a soft, lint-free cloth; avoid abrasive materials that dull the surface.
