SICK TIM310-1030000 Sensor
SICK TIM310-1030000 compact 2D LiDAR, part 1052627. 270-degree scanning in a 60x60x79 mm housing for small AGVs and robots.
Overview

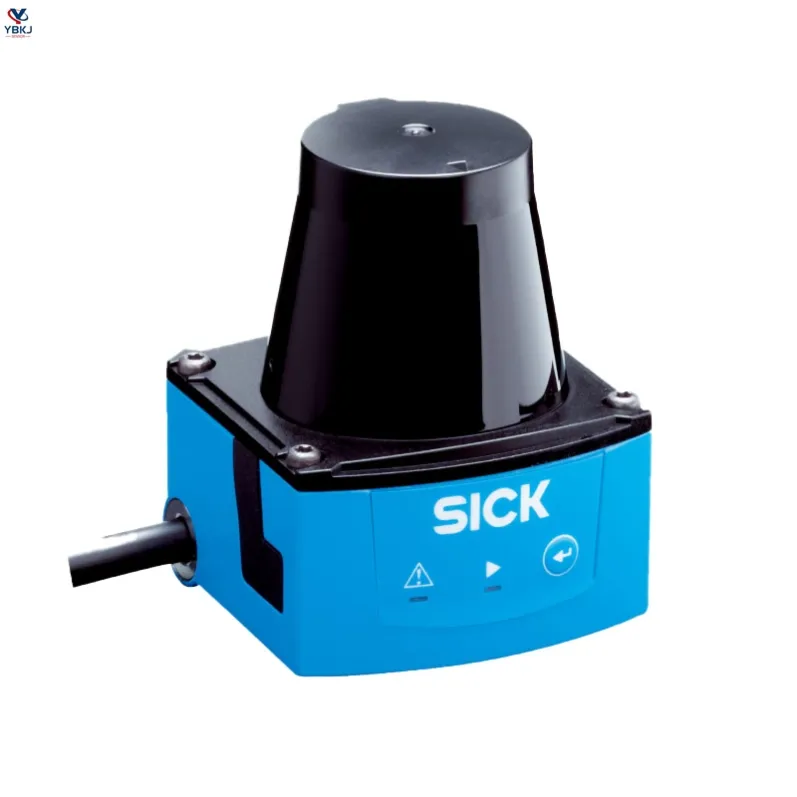

The SICK TIM310-1030000 (part number 1052627) is a compact 2D LiDAR sensor of the TiM family. In a housing of only 60 mm x 60 mm x 79 mm it scans its surroundings with a 270-degree aperture, detecting objects for mobile platforms, small AGVs and area monitoring in confined spaces.
How It Works
A rotating optical element sweeps infrared laser pulses across the 270-degree plane. Time-of-flight evaluation produces a distance profile around the sensor at high scan frequency. The integrated evaluation reports detected objects through switching outputs and interfaces.
Key Features
- 270-degree scanning aperture in a miniature housing
- 2D LiDAR object detection for mobile platforms
- Housing size 60 mm x 60 mm x 79 mm
- Part number 1052627
- Lightweight design for small vehicles and robots
- Simple configuration of detection zones
Typical Applications
- Obstacle detection on small automated guided vehicles
- Area monitoring in tight machine sections
- Object detection around service robots
- Protection of transfer stations on compact systems
- Peripheral monitoring on intralogistics shuttles
Specifications
Attribute | Value |
|---|---|
Model | SICK TIM310-1030000 |
Part number | 1052627 |
Detection principle | 2D LiDAR, 270-degree aperture |
Housing size | 60 mm x 60 mm x 79 mm |
Family | TiM compact LiDAR sensors |
Installation and Setup Notes
Mount the sensor level on the vehicle or machine so the scan plane covers the required object heights, and configure detection fields for the application geometry. Because the miniature housing sits close to the ground on small platforms, keep the window clear of splash dirt. Test detection with the lowest obstacle that must be found.
Frequently Asked Questions
What is the difference from the TiM320?
Both are compact TiM-family scanners; the order codes define scanning range and interface configurations.
Is it a safety device?
The TiM310 is an object detection sensor; personnel protection requires the dedicated safety laser scanner families.
Can it run on battery-powered vehicles?
Yes, its low power consumption suits battery-driven mobile platforms.
