SICK C2C-SA18030A10000 Sensor

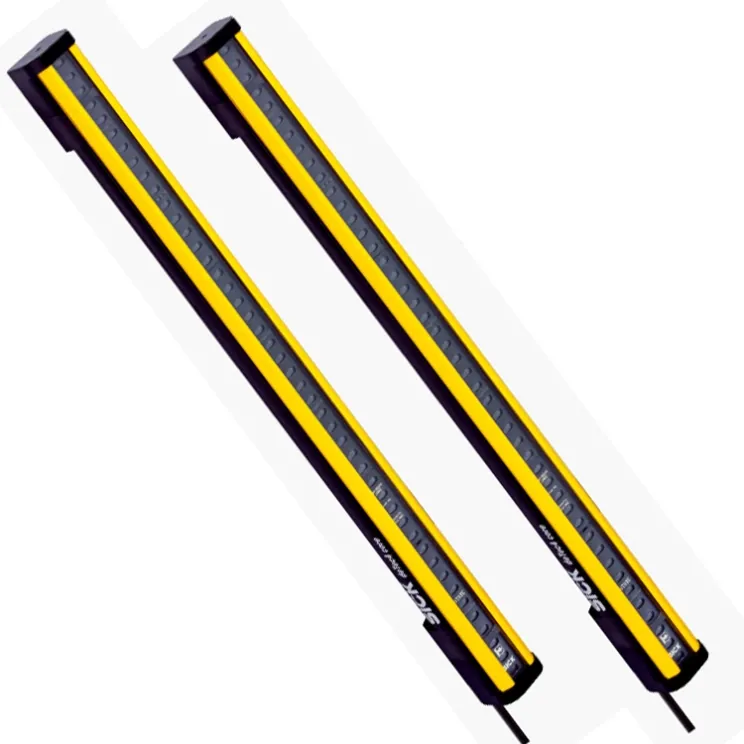

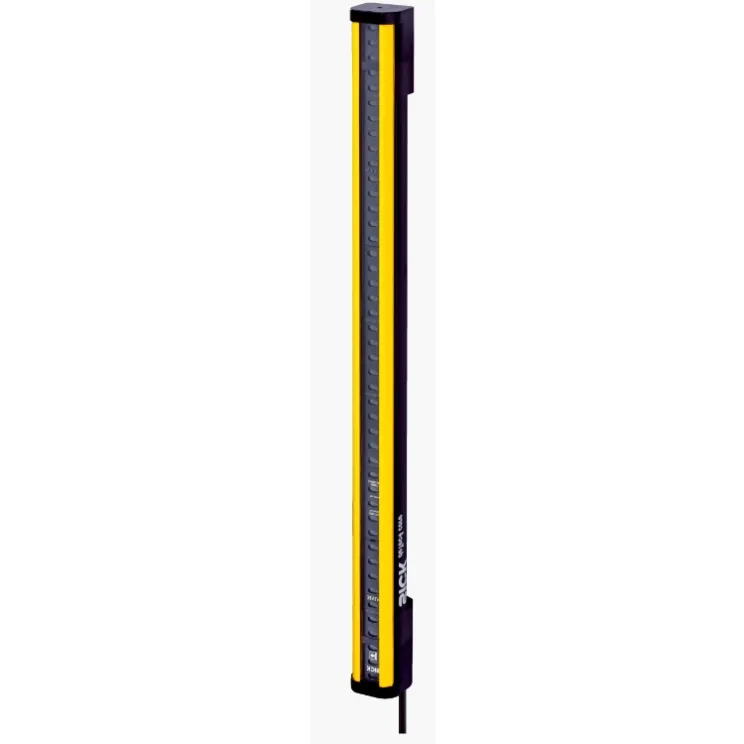

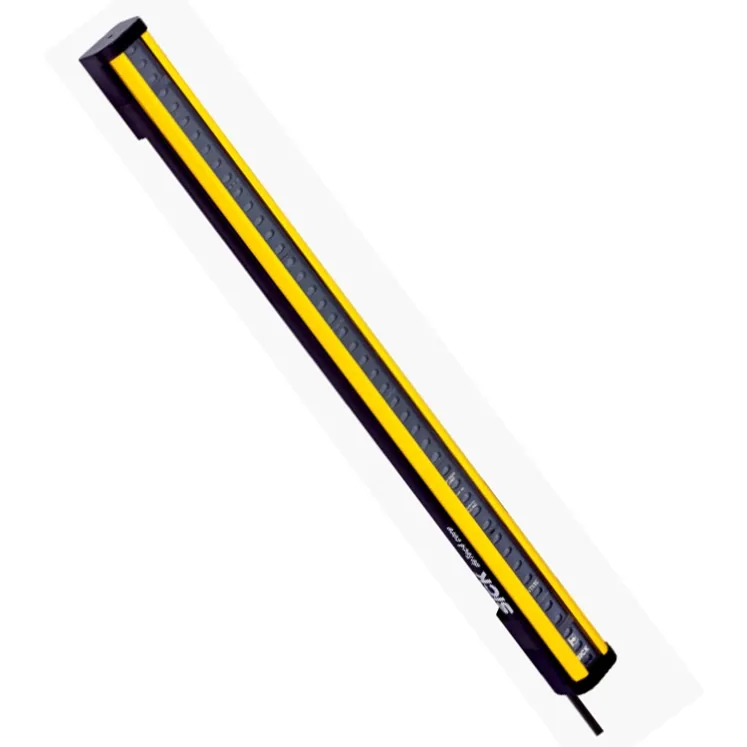

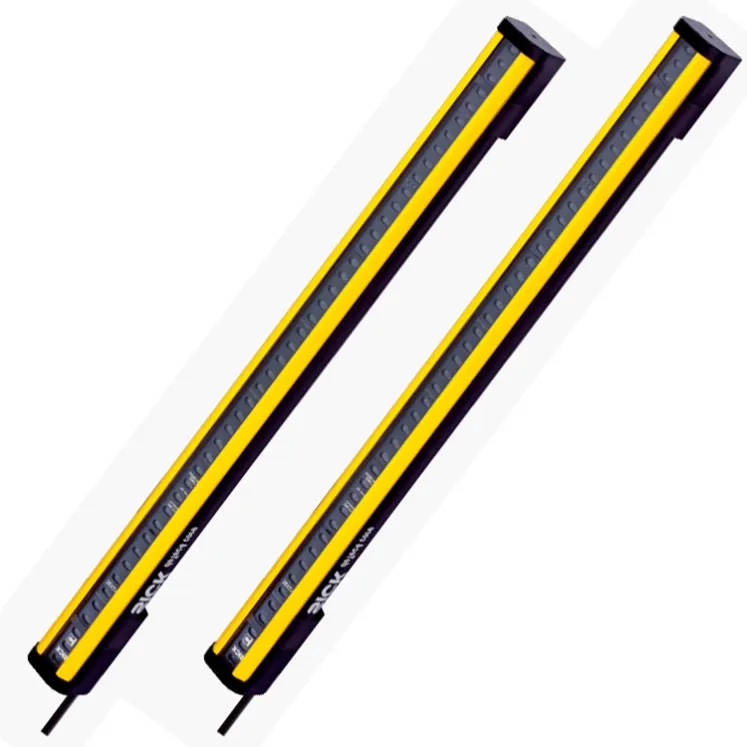

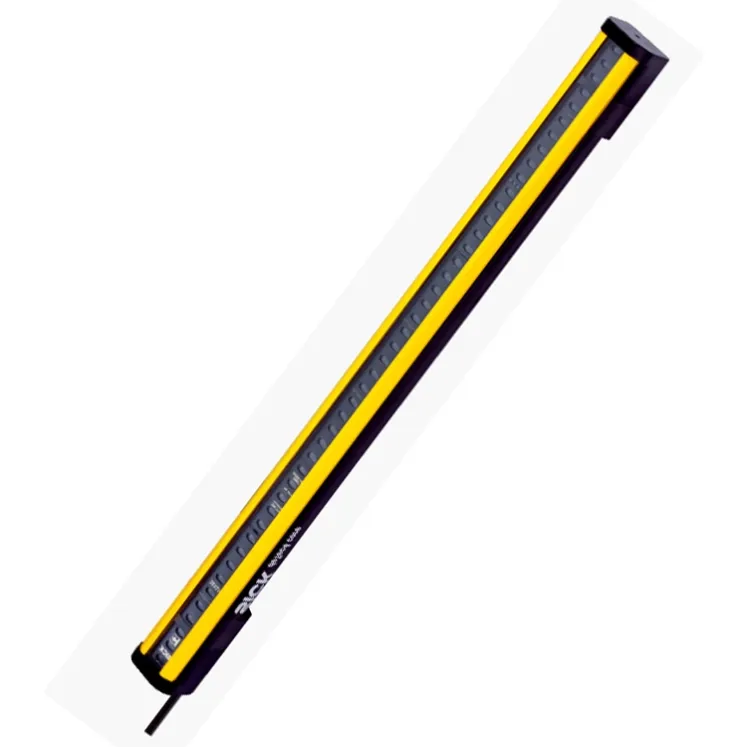

SICK C2C-SA18030A10000 safety light curtain sender, part 1213220. 1800 mm field, 30 mm resolution for body access guarding.
Overview
The SICK C2C-SA18030A10000 (part number 1213220) is a sender unit of the C2C safety light curtain series. With a protective field height of 1800 mm and 30 mm resolution per the order code, it forms a body-access guarding barrier together with the matching receiver, protecting personnel at machine access points.
How It Works
The sender emits a synchronized grid of infrared beams across the 1800 mm protective field. The matching receiver evaluates which beams arrive; an interruption opens the safety output circuit and the machine control initiates the safe stop.
Key Features
- C2C series safety light curtain sender unit
- Protective field height 1800 mm, resolution 30 mm (order code)
- Part number 1213220
- Suitable for body and access protection
- Rugged aluminum profile housing
- Synchronized beam grid with the matching receiver
Typical Applications
- Access guarding on large production machines
- Perimeter-style protection at machine openings
- Personnel detection on assembly and processing lines
- Hazard zone demarcation on automation cells
- Entry protection on robotic work envelopes
Specifications
Attribute | Value |
|---|---|
Model | SICK C2C-SA18030A10000 |
Part number | 1213220 |
Device type | Safety light curtain sender unit |
Protective field height | 1800 mm |
Resolution | 30 mm |
Installation and Setup Notes
Mount the sender rigidly opposite the matching receiver, align until the status shows the full beam grid received, and wire the safety outputs dual-channel into the safety controller. Verify that the 1800 mm field height matches the risk assessment and applicable standards for the access being guarded.
Frequently Asked Questions
Which receiver matches this sender?
The matching C2C receiver with identical field height and resolution, ordered with the corresponding E-code part number.
What does SA in the order code mean?
It identifies the sender unit variant with its sync and connection configuration.
Is 30 mm resolution suitable for body protection?
Yes, 30 mm resolution is typically applied for body and access protection; finger or hand protection uses finer resolutions.
Related Safety Products
For point protection with finer resolution, see the SICK C4C-EC01510A10000 family. For safety evaluation, see the SICK UE410-MU3T5.
