SICK CLV630-1120 Sensor
SICK CLV630-1120 fixed-mount barcode scanner, part 1041971. Industrial 1D barcode reading with autofocus for conveyor identification.
Overview

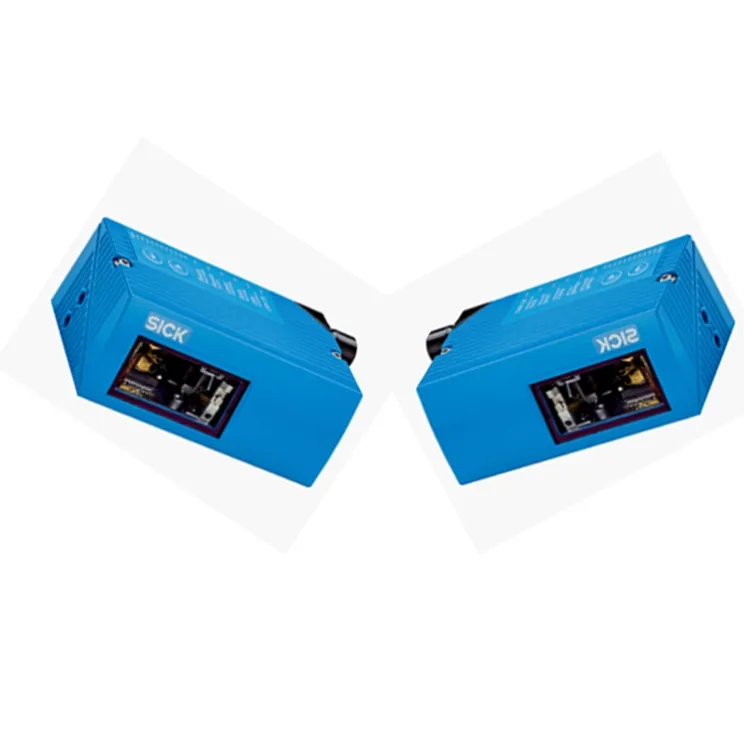

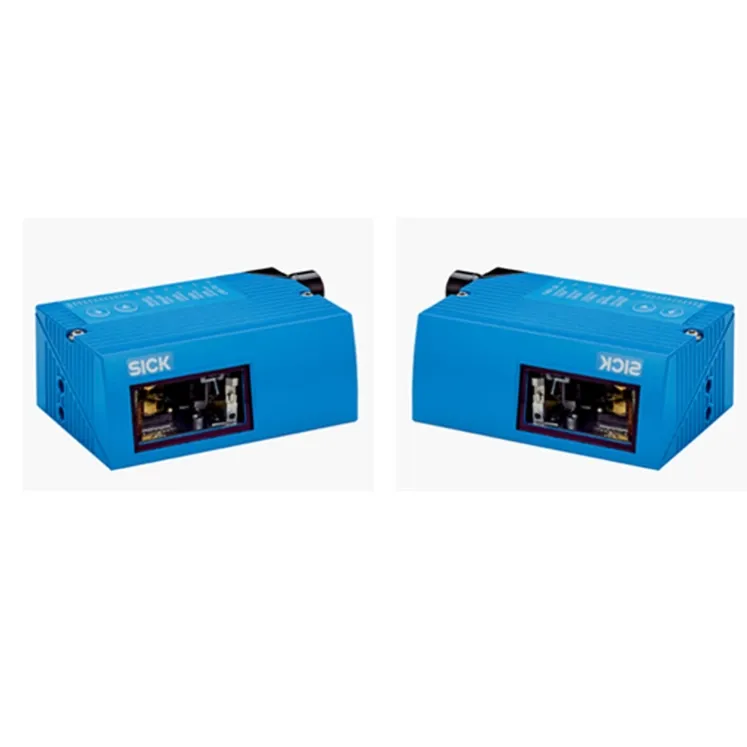

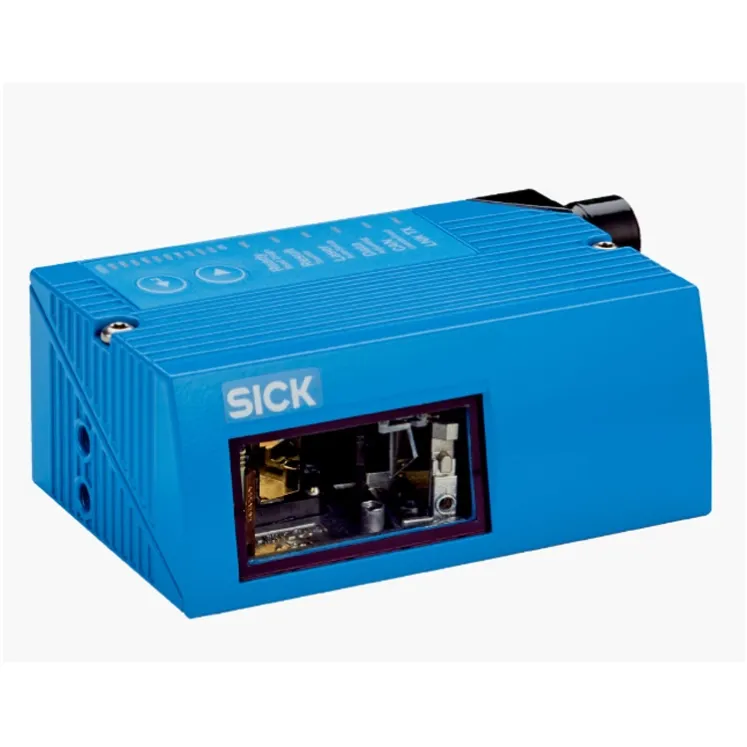

The SICK CLV630-1120 (part number 1041971) is a fixed-mount barcode scanner of the CLV630 family. Designed for industrial conveyor scanning, it reads 1D barcodes at high line speeds with autofocus and dependable decoding, supporting goods identification in distribution centers and production logistics.
How It Works
The scanner projects a laser scan line across the moving product. Reflected light is captured and decoded into the barcode content, which is passed to the control system via industrial interfaces. Autodynamics adjust the scanning parameters to the product speed, keeping read rates high without operator tuning.
Key Features
- Industrial 1D barcode scanning for conveyor operation
- Part number 1041971
- Autofocus optics for varying reading distances
- Autodynamics adapt to product speed changes
- Reliable decoding of damaged and low-contrast codes
- Industrial interfaces for PLC and system integration
Typical Applications
- Carton identification on sorting conveyors
- Goods tracking in warehouse and distribution systems
- Production data capture on packaging lines
- Pallet and parcel identification at sortation points
- Traceability scanning in intralogistics
Specifications
Attribute | Value |
|---|---|
Model | SICK CLV630-1120 |
Part number | 1041971 |
Device type | Fixed-mount 1D barcode scanner |
Family | CLV630 industrial barcode scanners |
Installation and Setup Notes
Mount the scanner above or beside the conveyor at the angle recommended for the code quality in use, and set the reading distance within the autofocus window. Configure interface and code symbologies via the family setup tools, then verify read rates over several minutes of live traffic.
Frequently Asked Questions
Can it read codes on fast conveyors?
Yes, autodynamics track product speed so decoding stays reliable at high line speeds.
How does it handle poor codes?
The decoder includes reconstruction features for damaged, short and low-contrast barcodes.
What does the 1120 suffix define?
It identifies the interface and optics configuration of this CLV630 variant.
