SICK DBS50E-SKRJ01000 Sensor

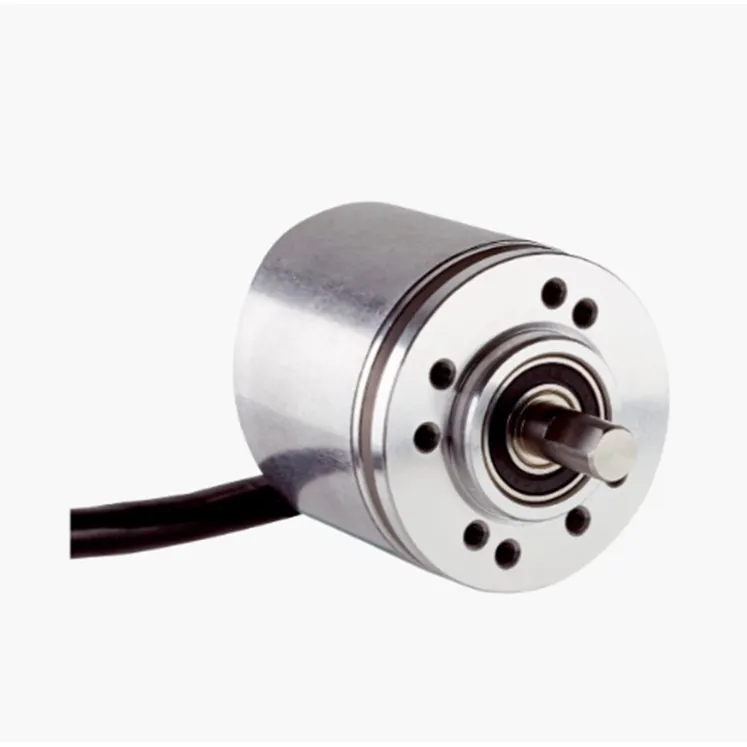

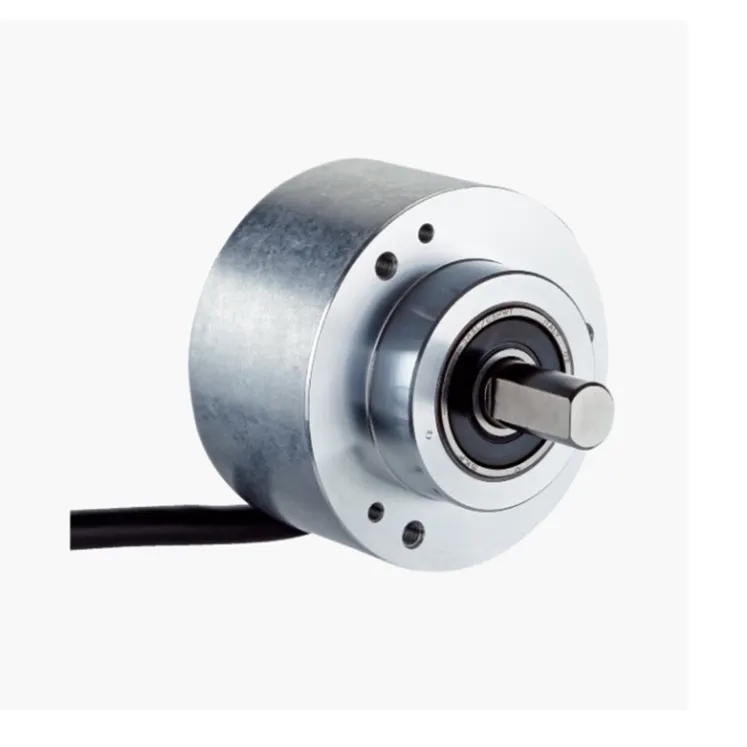

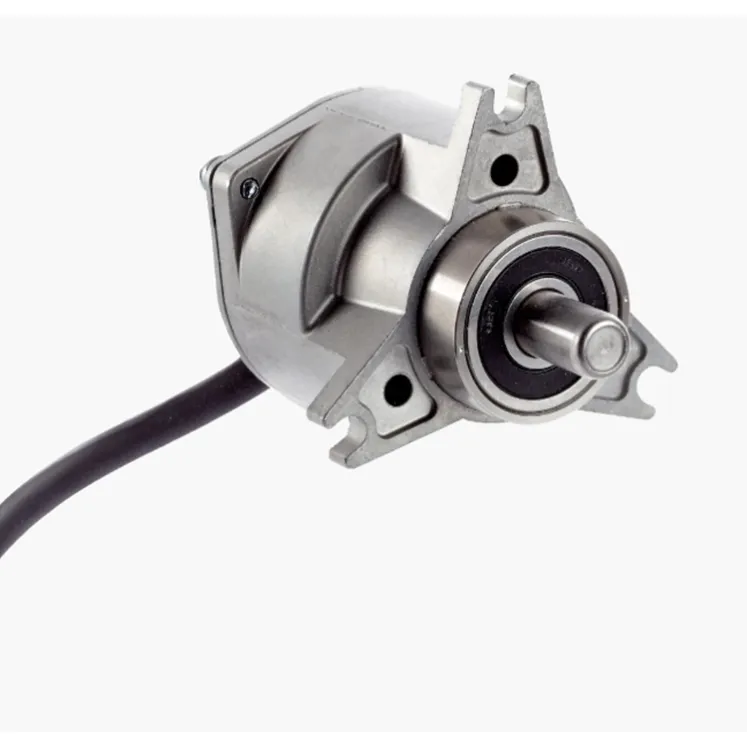

SICK DBS50E-SKRJ01000 incremental rotary encoder. 1000 pulses per revolution in a sturdy 50 mm-class industrial housing.
Overview
The SICK DBS50E-SKRJ01000 is an incremental rotary encoder of the DBS50 family. With 1000 pulses per revolution per the order code, it delivers reliable speed and position feedback in a sturdy 50 mm-class housing for demanding industrial drive applications.
How It Works
Optical scanning of a graduated disc produces incremental pulses proportional to shaft rotation. The controller derives speed and travel from the pulse train. The 50 mm-class housing provides additional mechanical robustness for continuous duty environments.
Key Features
- Incremental rotary encoder, 1000 pulses per revolution (order code)
- Sturdy 50 mm-class industrial housing
- Optical scanning for consistent signal quality
- Reliable feedback for drives and process lines
- Simple integration with standard counter inputs
- Long service life in continuous duty
Typical Applications
- Drive feedback on cranes and conveyors
- Speed control on process line drives
- Length measurement on material feed equipment
- Position feedback on rotary tables
- Feedback on heavy-duty machinery axes
Specifications
Attribute | Value |
|---|---|
Model | SICK DBS50E-SKRJ01000 |
Encoder type | Incremental rotary encoder |
Pulses per revolution | 1000 (order code) |
Family | DBS50 incremental encoders |
Installation and Setup Notes
Mount with a flexible coupling to protect the bearing from shaft misalignment, and respect the family's shaft load ratings. Use shielded cabling with correct grounding. Confirm pulse direction and scaling in the controller after installation.
Frequently Asked Questions
Is this an absolute encoder?
No, the DBS50E family is incremental; position is relative to the reference point.
What does SKRJ01000 identify?
The suffix defines interface, shaft and the 1000 pulses per revolution of this variant.
Which protection is available?
The family is sealed for industrial environments per its ratings; check the datasheet for the exact class of this variant.
Related Encoders
For the 36 mm-class, see the SICK DBS36E-BBEK00100. For the 60 mm hollow-shaft family, see the SICK DBS60E-TECC02048.
