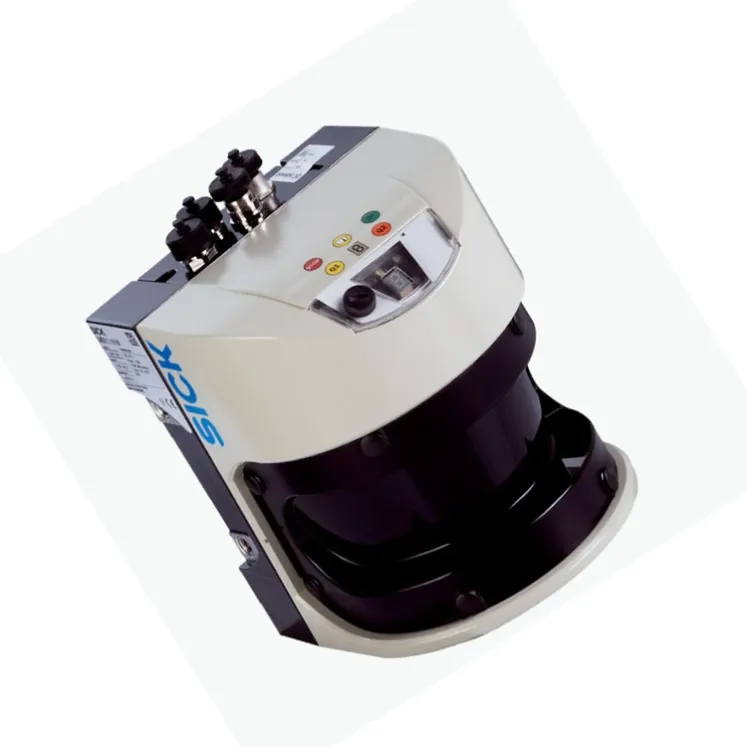

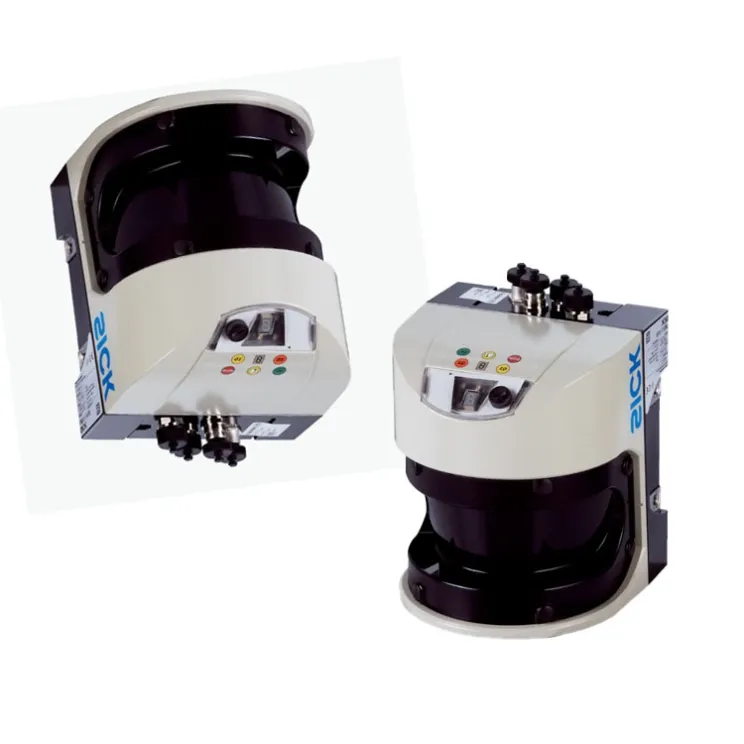

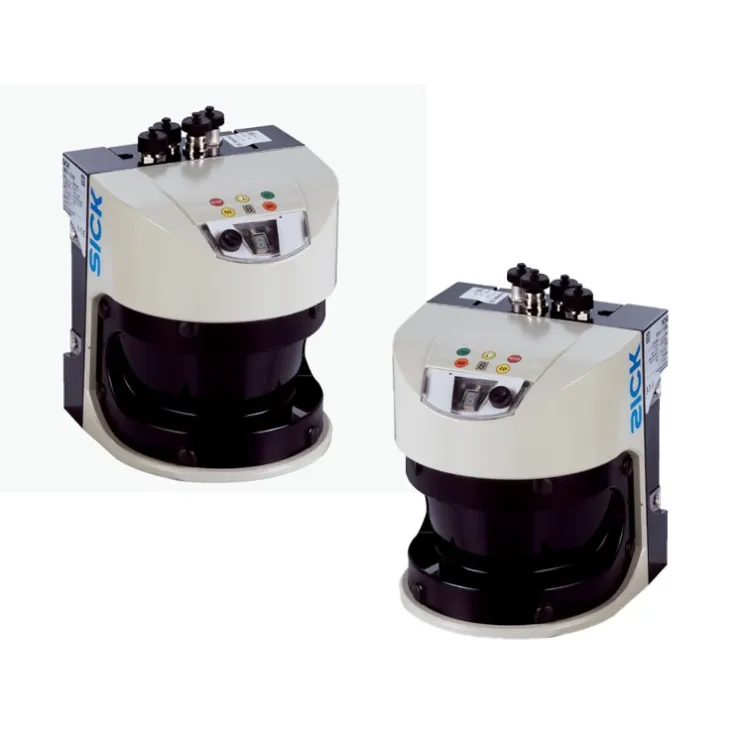

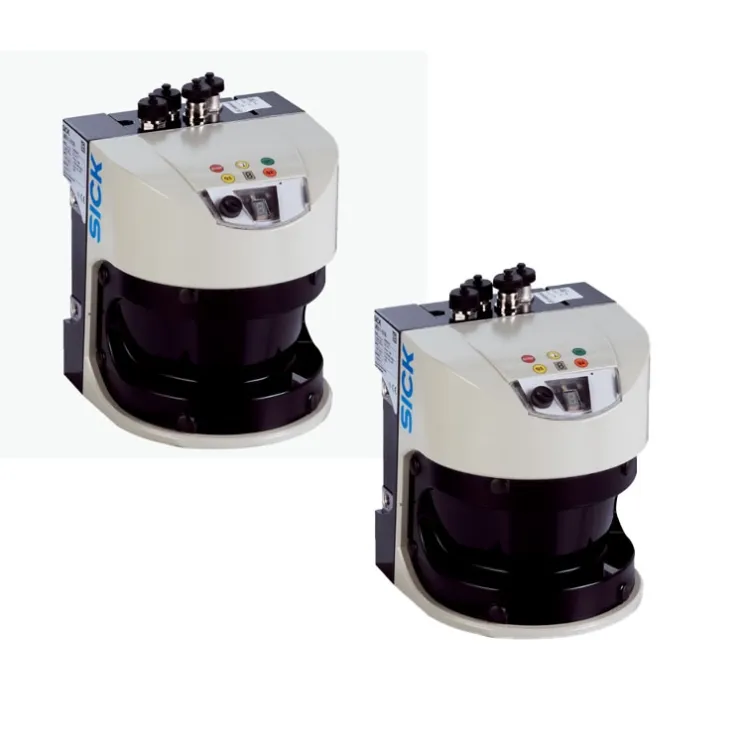

SICK LMS511-10100 Sensor
SICK LMS511-10100 outdoor 2D LiDAR, LMS511 PRO family. Wide-angle long-range scanning for crane anti-collision and area monitoring.
Overview
The SICK LMS511-10100 is a high-performance 2D outdoor LiDAR sensor of the LMS511 PRO family. With a wide scanning angle and long range, it monitors large outdoor areas and detects objects reliably for ports, mobile machinery, and infrastructure applications.
How It Works
The sensor rotates a laser beam across its scanning plane and measures the time of flight for each direction, generating distance profiles at high angular resolution. The PRO electronics process the point data into configurable detection fields with precise, fast switching behavior.
Key Features
- Outdoor 2D LiDAR with wide scanning angle
- Long-range object detection with fine angular resolution
- Configurable warning and detection fields
- Rugged housing for mobile and stationary outdoor use
- Fast scan rate for dynamic environments
- Field-proven family for ports and heavy machinery
Typical Applications
- Collision avoidance on container cranes and RTGs
- Monitoring of loading areas and transfer zones
- Object detection on automated guided heavy vehicles
- Approach monitoring at gates and locks
- Area supervision on mining and construction machinery
Specifications
Attribute | Value |
|---|---|
Model | SICK LMS511-10100 |
Detection principle | Time-of-flight 2D LiDAR scanning |
Family | LMS511 PRO outdoor LiDAR sensors |
Installation and Setup Notes
Choose a mounting position that gives the sensor a clear view of the required plane and protects the window from direct impact. Define the fields for the specific application and test them with representative targets, including dark objects at maximum distance. Schedule window cleaning according to site conditions.
Frequently Asked Questions
Can it distinguish people from objects?
The LMS511 detects objects and their distance; classification behavior depends on configuration and application design.
Does it work at night?
Yes, LiDAR is active illumination and operates independently of ambient light.
What output does it provide?
Field-based switching signals and scan data over digital interfaces, depending on configuration.
