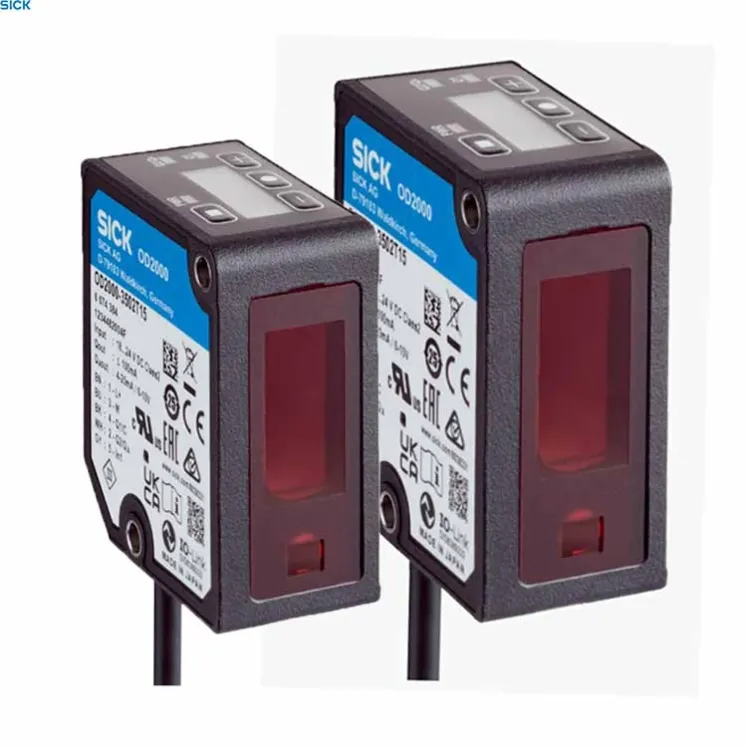

SICK OD2000-2452T15 Sensor
SICK OD2000-2452T15 laser triangulation displacement sensor, part 6074383. Digital high-resolution displacement and profile measurement.
Overview
The SICK OD2000-2452T15 (part number 6074383) is a digital laser triangulation displacement sensor of the OD2000 family. It provides high-resolution distance and displacement measurement for industrial quality tasks, from profile checks to position monitoring on fast machines.
How It Works
A laser spot is projected onto the target and the reflected spot position is captured by an internal receiver array. As the target moves, the spot position shifts and the electronics compute the displacement with high resolution. Digital processing delivers stable values even on structured surfaces.
Key Features
- Laser triangulation with digital signal processing
- High-resolution displacement values for quality tasks
- Part number 6074383
- Reliable measurement on varied surface finishes
- Fast sampling rate for dynamic measurements
- Family-integrated controller and interfaces
Typical Applications
- Profile and step height measurement on machined parts
- Monitoring of web thickness and coating layers
- Vibration and runout checks on test benches
- Precision end-position monitoring on servo axes
- Gap measurement in assembly equipment
Specifications
Attribute | Value |
|---|---|
Model | SICK OD2000-2452T15 |
Part number | 6074383 |
Detection principle | Laser triangulation displacement measurement |
Family | OD2000 displacement sensors |
Installation and Setup Notes
Keep the sensor head within the family's measuring window relative to the target and fix all mounts rigidly. Use the family software to set zero, span and filtering for the application, and validate the readings with a reference standard. Protect the optics from process spatter with clean-air purging where required.
Frequently Asked Questions
What is the difference from the 0301T15 variant?
The order codes define measuring range and optics of the OD2000 family variants.
Can it measure dark rubber?
Yes, triangulation works on diffuse surfaces including dark materials.
Is filtering available?
Yes, digital filtering stabilizes readings on vibrating targets.
