SICK TTK70-HXA0-K02 Sensor

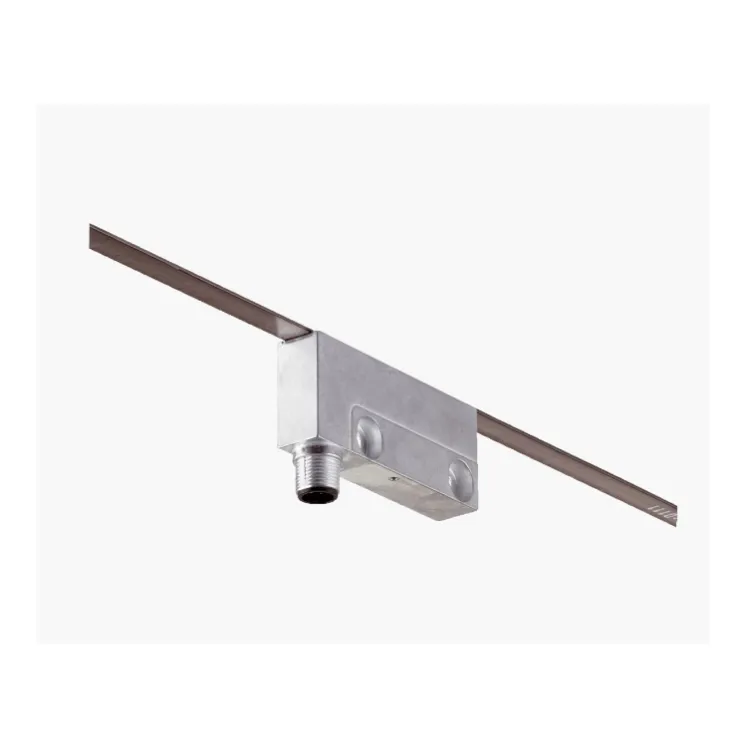

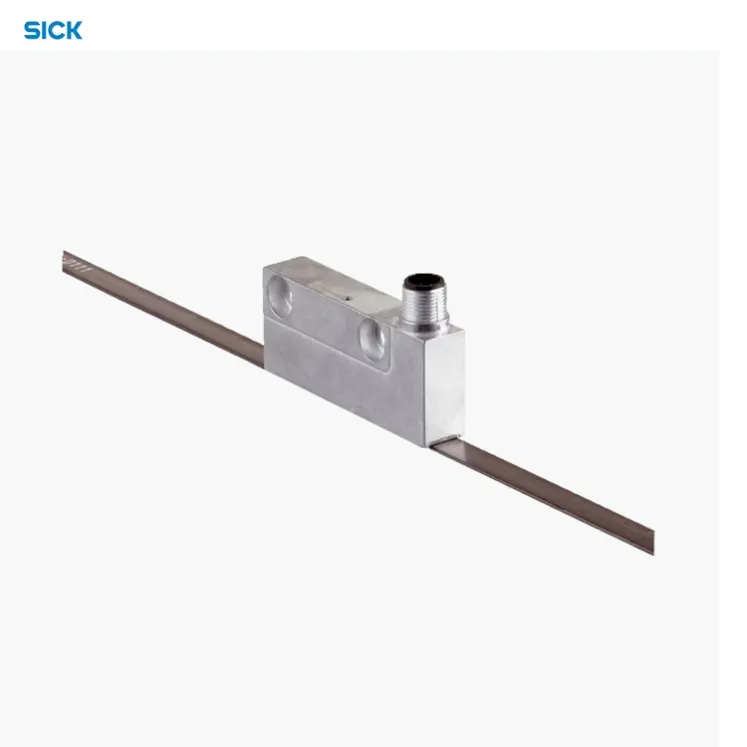

SICK TTK70-HXA0-K02 magnetic linear encoder, part 1037434. Contactless high-resolution position feedback for linear motor axes.
Overview
The SICK TTK70-HXA0-K02 (part number 1037434) is a linear encoder of the TTK70 family. The compact reading head travels along a magnetic scale without contact and records position values with high resolution, serving as motor feedback for linear motors and as position measurement on precise machine axes.
How It Works
The magnetic scale carries a fine pole pattern that the reading head scans as it moves. The head converts the scanned pattern into position signals for the drive controller. Because the measurement is contactless and magnetic, it remains stable in environments with dust and oil.
Key Features
- Contactless magnetic linear position measurement
- Part number 1037434
- Compact reading head for slim axis designs
- Robust against dust, oil and vibration
- High-resolution feedback for motion control
- Flexible measuring lengths via scale selection
Typical Applications
- Motor feedback for linear motors
- Position feedback on machine tool slides
- Measurement on precision assembly axes
- Feedback on robotics and gantry stages
- Position control on printing and converting equipment
Specifications
Attribute | Value |
|---|---|
Model | SICK TTK70-HXA0-K02 |
Part number | 1037434 |
Encoder type | Magnetic linear encoder |
Family | TTK70 linear encoders |
Installation and Setup Notes

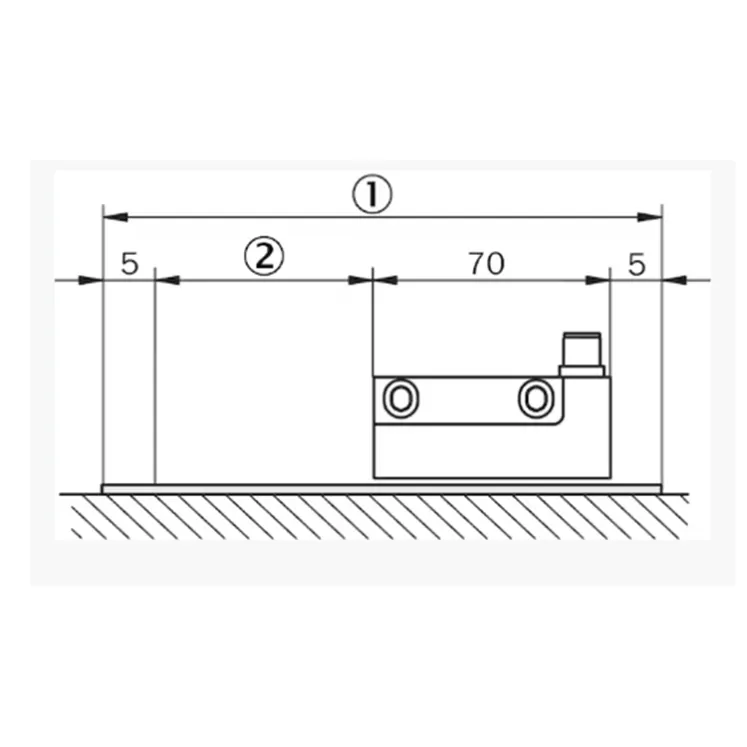

Mount the magnetic tape straight along the axis and maintain the specified distance to the reading head over the entire travel. Check the signal quality at several positions and verify the counting direction with the controller. Protect the tape edges from mechanical damage during installation.
Frequently Asked Questions
How is it installed?
The magnetic tape is applied along the axis and the reading head is clamped at the defined gap; the family documents the exact tolerances.
Is it affected by swarf?
Magnetic scanning tolerates dust and oil well; large ferrous particles resting on the tape should be removed.
What does HXA0-K02 define?
The suffix identifies interface, signal type and scale configuration of this variant.
Related Encoders
For absolute linear feedback, see the SICK L230-P580C2S00000. For the magnetic linear family variant, see the SICK KHK53-AXB00548.
