SICK VTE180-2P42482 Sensor
SICK VTE180-2P42482 cylindrical M18 photoelectric sensor with PNP output. Visible red light spot for easy alignment on conveyors and machine frames.
Overview

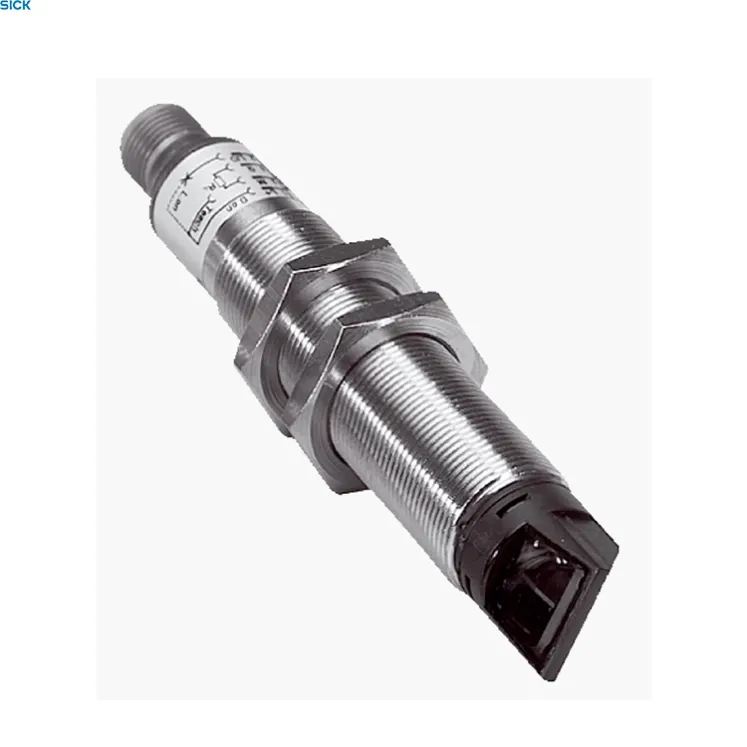

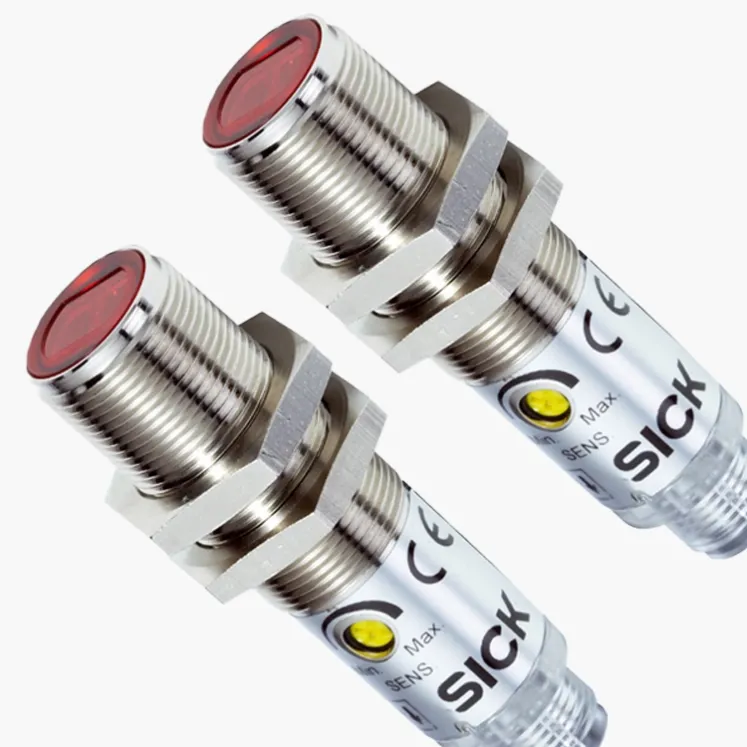

The SICK VTE180-2P42482 is a cylindrical photoelectric sensor in the M18 barrel format with PNP output. The metal housing mounts through a standard bore, and the red light spot on the target makes alignment and troubleshooting straightforward on conveyors, machine frames and handling equipment.
How It Works
Following the diffuse principle, the sensor emits modulated light and detects the reflection returned from the object. The output switches when the returned intensity crosses the adjusted threshold. Sensitivity is set on the housing so the sensor adapts to target color and distance.
Key Features
- M18 cylindrical housing mounts through a standard bore with lock nuts
- PNP switching output (P order code)
- Visible red light spot simplifies alignment on the target
- Sensitivity adjustment for different targets and distances
- Robust metal barrel for industrial environments
- Modulated light for operation under shop floor lighting
Typical Applications
- Object detection through machine frame bores
- Presence checks on conveyor transfer stations
- Monitoring of workpiece position on indexing tables
- Detection in assembly and handling equipment
- General sensing where cylindrical format is preferred
Specifications
Attribute | Value |
|---|---|
Model | SICK VTE180-2P42482 |
Detection principle | Diffuse photoelectric, cylindrical format |
Housing format | M18 cylindrical |
Output type | PNP switching output |
Installation and Setup Notes
Tighten the mounting nuts evenly and use a thread locker where vibration is present. Point the optical face at the target path and confirm the beam cone is not clipped by the bore edge. Set the sensitivity with the darkest production target and leave margin for color variation.
Frequently Asked Questions
What is the benefit of the visible red light spot?
It shows exactly where the sensor is looking, which speeds up alignment and makes misalignment easy to spot during maintenance.
Can the sensor be flush-mounted in metal?
Cylindrical photoelectric sensors need optical clearance; check the recommended mounting depth so the beam cone is not obstructed.
Which output does it provide?
A PNP switching output for standard industrial PLC inputs.
Related Photoelectric Sensors

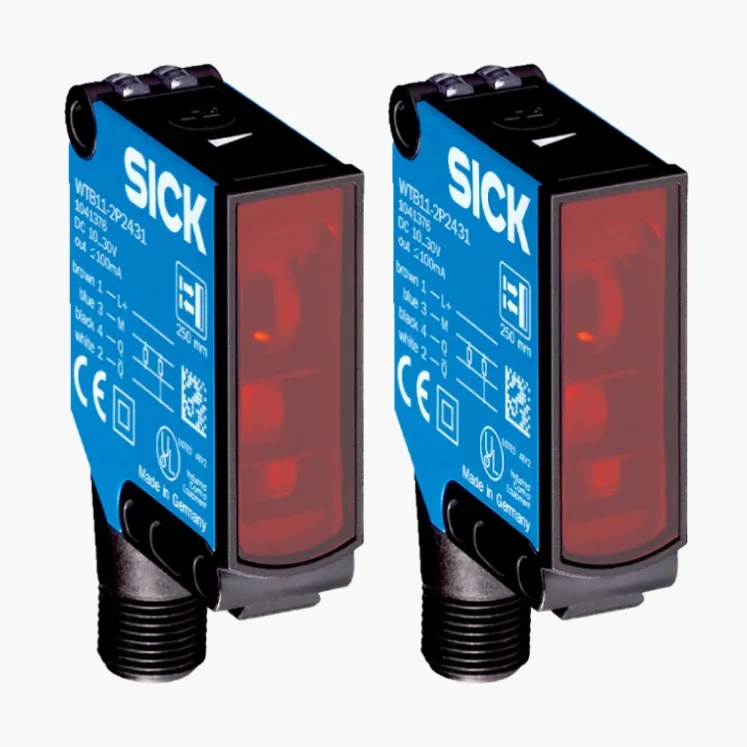

For another cylindrical photoelectric sensor, see the SICK WL11-2P2430. For rectangular diffuse detection, see the SICK WTB12-3P2431.
