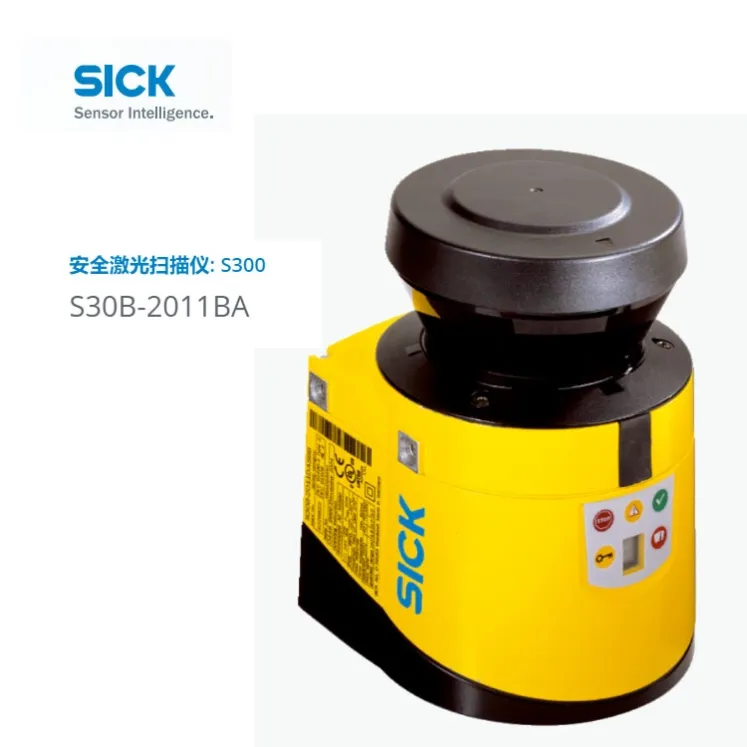

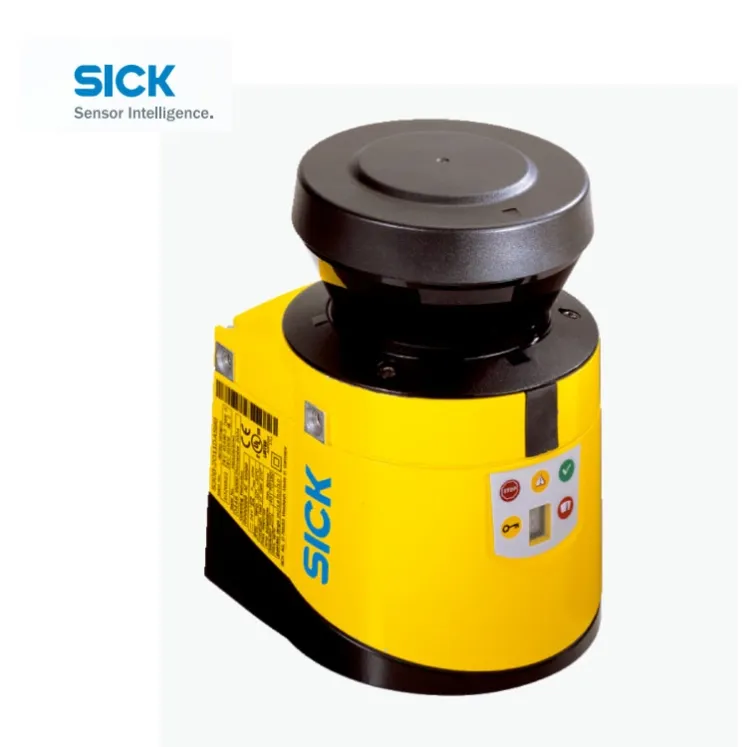

SICK S30B-2011BA Sensor
SICK S30B-2011BA safety laser scanner, part 1026820. Proven hazardous area and point protection with configurable fields.
Overview
The SICK S30B-2011BA (part number 1026820) is a safety laser scanner of the S30B family. It monitors hazardous areas and points around machines with configurable protective fields, delivering safe outputs for the machine safety circuit in a proven, robust platform.
How It Works
The scanner sweeps pulsed infrared light across its monitoring plane. Time-of-flight evaluation produces a distance profile that the device compares against configured protective fields; a violation switches the safe outputs, initiating the machine's safe stop.
Key Features
- Safety laser scanner for hazardous area and point protection
- Part number 1026820
- Configurable protective and warning fields
- Field set selection for changing machine states
- Robust housing for demanding environments
- Long-established safety scanner family
Typical Applications
- Hazardous area protection on production machinery
- Personnel protection on automated transport vehicles
- Access monitoring on processing equipment
- Protection zones on palletizing cells
- Field monitoring on transfer systems

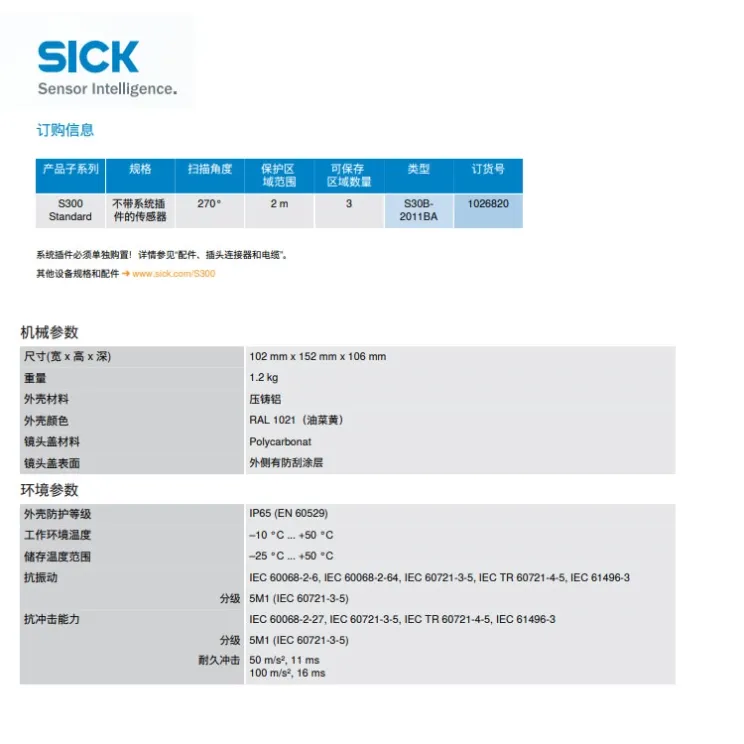

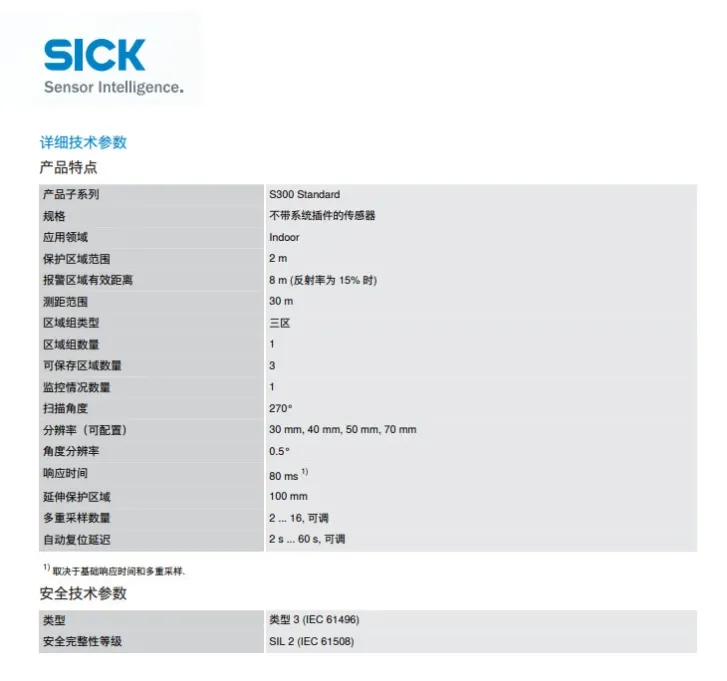

Specifications
Attribute | Value |
|---|---|
Model | SICK S30B-2011BA |
Part number | 1026820 |
Device type | Safety laser scanner, S30B family |
Installation and Setup Notes
Install the scanner according to the field plan, configure protective fields with the family software, and verify detection with test targets at the extremes of the fields. Maintain the optical window and respond to contamination warnings to preserve availability.
Frequently Asked Questions
Which field sets does it support?
The family supports multiple selectable field sets, chosen via safe inputs for different machine modes.
Can it be used on AGVs?
Yes, the S30 family is widely used for personnel protection on mobile platforms.
What does 2011BA define?
The order code specifies range, field configuration and interface of this variant.
