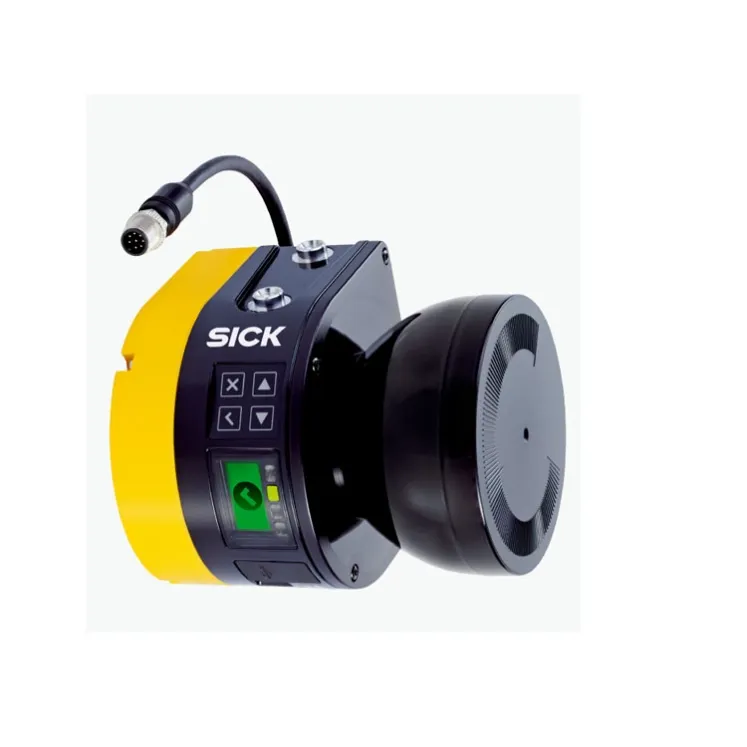

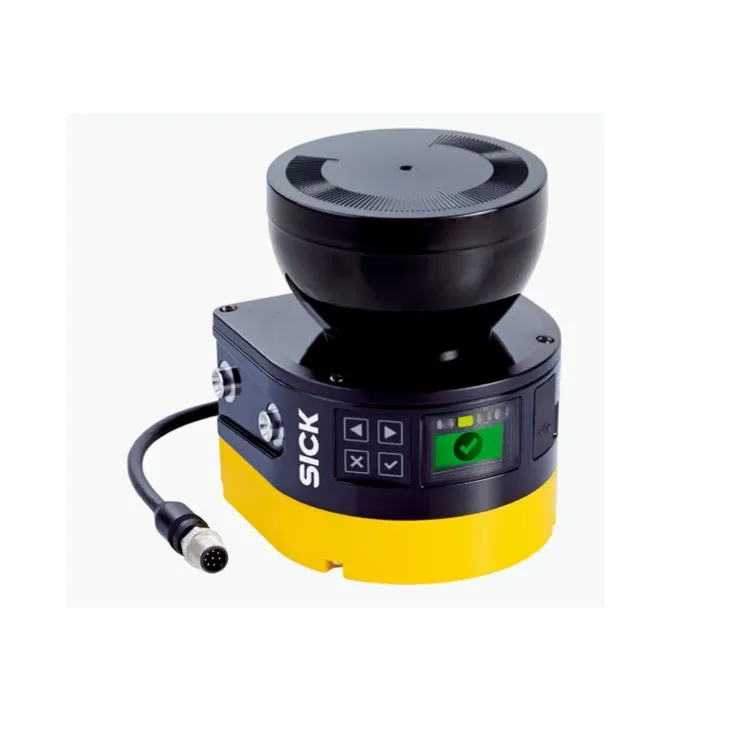

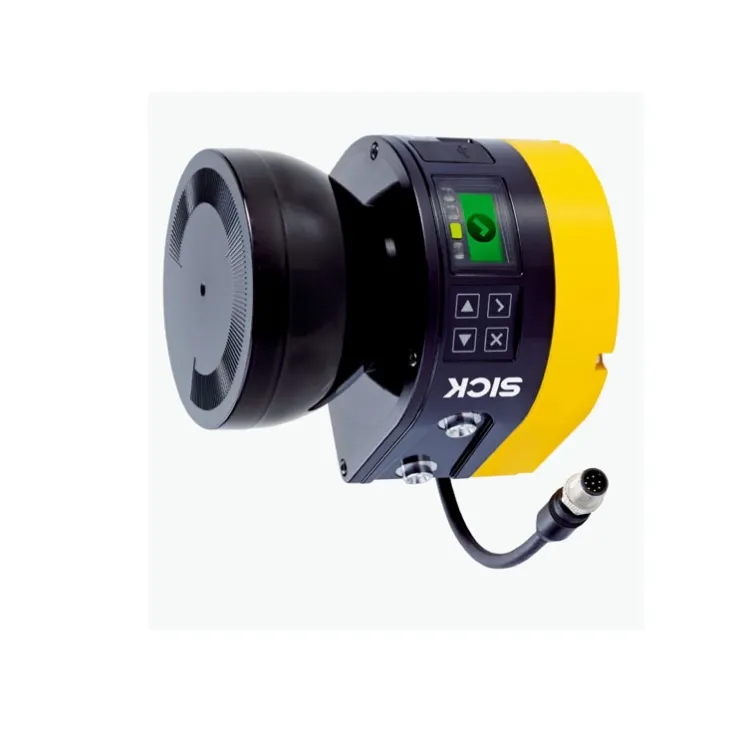

SICK MICS3-AAAZ40AZ1P01 Sensor
SICK MICS3-AAAZ40AZ1P01 safety laser scanner, part 1075842. microScan3 family protective field monitoring for machines and AGVs.
Overview
The SICK MICS3-AAAZ40AZ1P01 (part number 1075842) is a safety laser scanner of the microScan3 family. It monitors hazardous areas and hazardous points around machines with configurable protective fields, combining high availability with simple diagnostics, and integrates into the machine safety circuit for personnel protection.
How It Works
The scanner rotates laser pulses across its scanning plane and evaluates the time of flight for each direction. Configured protective fields and warning fields are evaluated internally; when a person or object enters the protective field, the safe outputs switch off and the machine executes the safe stop.
Key Features
- Safety laser scanner for hazardous area and point protection
- Part number 1075842
- Configurable protective and warning fields
- High availability with contamination-based diagnostics
- Safe outputs for direct integration into safety circuits
- Configuration via the family software tools
Typical Applications
- Hazardous area protection on robot cells
- Hazardous point protection on automated machinery
- Access monitoring on packaging and processing machines
- Mobile personnel protection on AGVs
- Field monitoring on assembly and test equipment
Specifications
Attribute | Value |
|---|---|
Model | SICK MICS3-AAAZ40AZ1P01 |
Part number | 1075842 |
Device type | Safety laser scanner, microScan3 family |
Protection principle | Time-of-flight scanning with safe field evaluation |
Installation and Setup Notes
Mount the scanner at the height and angle matching the field plan, configure protective and warning fields in the family software, and validate the fields with the test piece at several distances. Respect the family's contamination diagnostics: keep the window clean and respond to contamination warnings.
Frequently Asked Questions
How does it differ from safety light curtains?
The scanner monitors a 2D area with freely shaped fields, while curtains monitor a plane between two bars; scanners suit irregular hazard zones.
Can it protect mobile machines?
Yes, the microScan3 family includes variants for mobile applications on AGVs.
How are fields configured?
Through the family configuration software with password-protected safety parameters.
